Unbound DNS keeps crashing every 2-3 mins.

[RES217AIII]

You accidentally inverted the Source instead of the Destination, and your Floating Rule is currently filtering outbound traffic (which is still blocking Unbound from reaching the internet).

Here is how both rules need to be configured:

1. Correct Destination NAT Configuration

Interface: Select all your local Interfaces/VLANs (do NOT select WAN or WireGuard).

Protocol: TCP/UDP

Source: any (Leave this completely default, do not invert!).

Port: *

Destination / Invert: Check the [X] (Invert) box.

Destination: Select This Firewall (self).

Port: 53 (domain)

Redirect Target IP: 127.0.0.1

Redirect Target Port: 53 (domain)

Filter Rule Association: Set this to Pass

Your current rule applies to traffic where the Source is not the firewall. We want it to apply to any client whose Destination is not the firewall.


2. Correct Floating Rule Configuration

If you still want to use the Floating Rule as a fallback block for port 53, it must only block incoming traffic from clients, never outbound traffic from Unbound.

Action: Block or Reject

Quick: Checked [X] (Apply immediately)

Interface: Select your local Interfaces/VLANs (do NOT select WAN, WireGuard, or Loopback).

Direction: Change this to IN (Currently, it is set to OUT, which blocks Unbound from hitting WAN!).

Protocol: IPv4 TCP/UDP

Source: any (Do not invert!).

Port: *

Destination / Invert: Check the [X] (Invert) box.

Destination: Select This Firewall (self).

Port: 53 (DOMAIN)



By setting Source: ! This Firewall, your rule was trying to match packets where the sender wasn't the firewall. We need to match packets where the intended target (Destination) isn't the firewall.

Your Floating Rule had the <- arrow (Outbound). This meant whenever Unbound itself tried to send a DNS request out to the internet via WAN, the firewall blocked it. Changing the direction to IN ensures it only blocks clients trying to push unauthorized DNS traffic into your local interfaces.

[apoorv569]

You accidentally inverted the Source instead of the Destination, and your Floating Rule is currently filtering outbound traffic (which is still blocking Unbound from reaching the internet).

Here is how both rules need to be configured:

1. Correct Destination NAT Configuration

Interface: Select all your local Interfaces/VLANs (do NOT select WAN or WireGuard).

Protocol: TCP/UDP

Source: any (Leave this completely default, do not invert!).

Port: *

Destination / Invert: Check the [X] (Invert) box.

Destination: Select This Firewall (self).

Port: 53 (domain)

Redirect Target IP: 127.0.0.1

Redirect Target Port: 53 (domain)

Filter Rule Association: Set this to Pass

Your current rule applies to traffic where the Source is not the firewall. We want it to apply to any client whose Destination is not the firewall.


2. Correct Floating Rule Configuration

If you still want to use the Floating Rule as a fallback block for port 53, it must only block incoming traffic from clients, never outbound traffic from Unbound.

Action: Block or Reject

Quick: Checked [X] (Apply immediately)

Interface: Select your local Interfaces/VLANs (do NOT select WAN, WireGuard, or Loopback).

Direction: Change this to IN (Currently, it is set to OUT, which blocks Unbound from hitting WAN!).

Protocol: IPv4 TCP/UDP

Source: any (Do not invert!).

Port: *

Destination / Invert: Check the [X] (Invert) box.

Destination: Select This Firewall (self).

Port: 53 (DOMAIN)



By setting Source: ! This Firewall, your rule was trying to match packets where the sender wasn't the firewall. We need to match packets where the intended target (Destination) isn't the firewall.

Your Floating Rule had the <- arrow (Outbound). This meant whenever Unbound itself tried to send a DNS request out to the internet via WAN, the firewall blocked it. Changing the direction to IN ensures it only blocks clients trying to push unauthorized DNS traffic into your local interfaces.

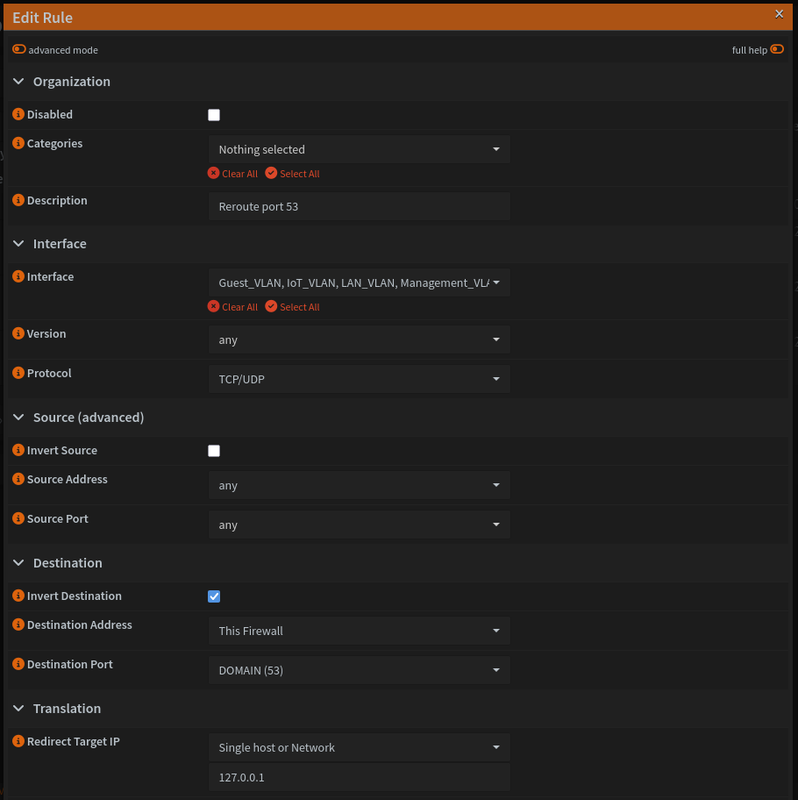

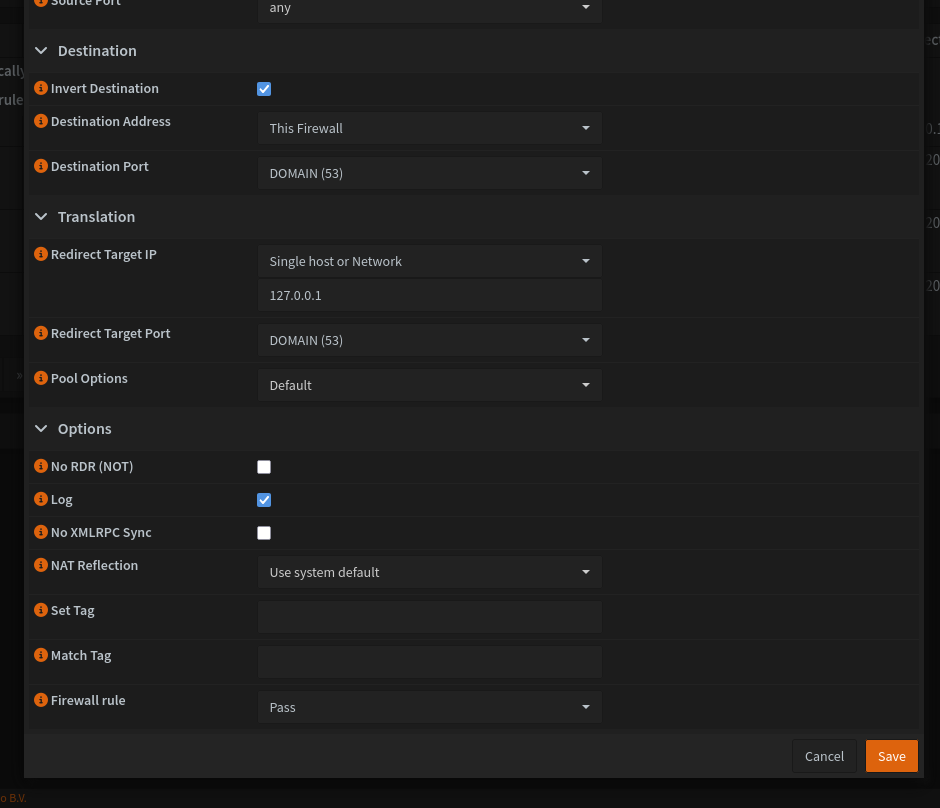

OK here is my destination NAT rule now,

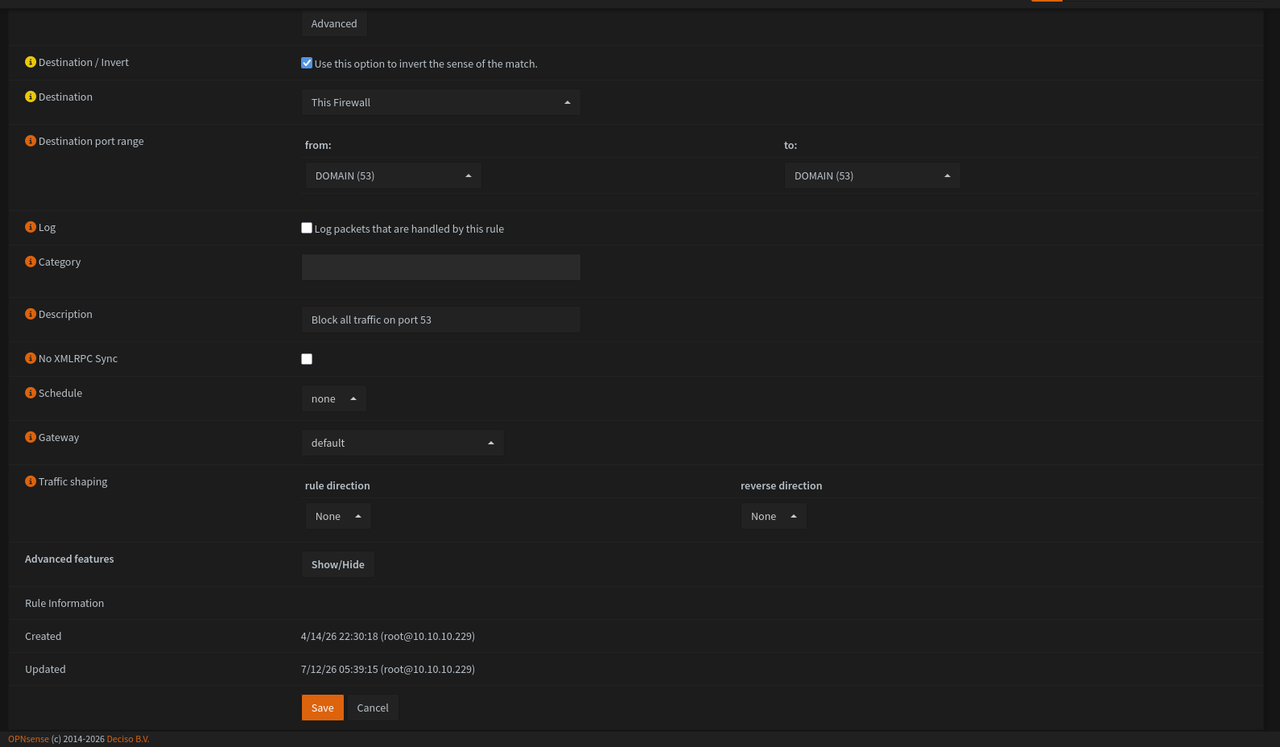

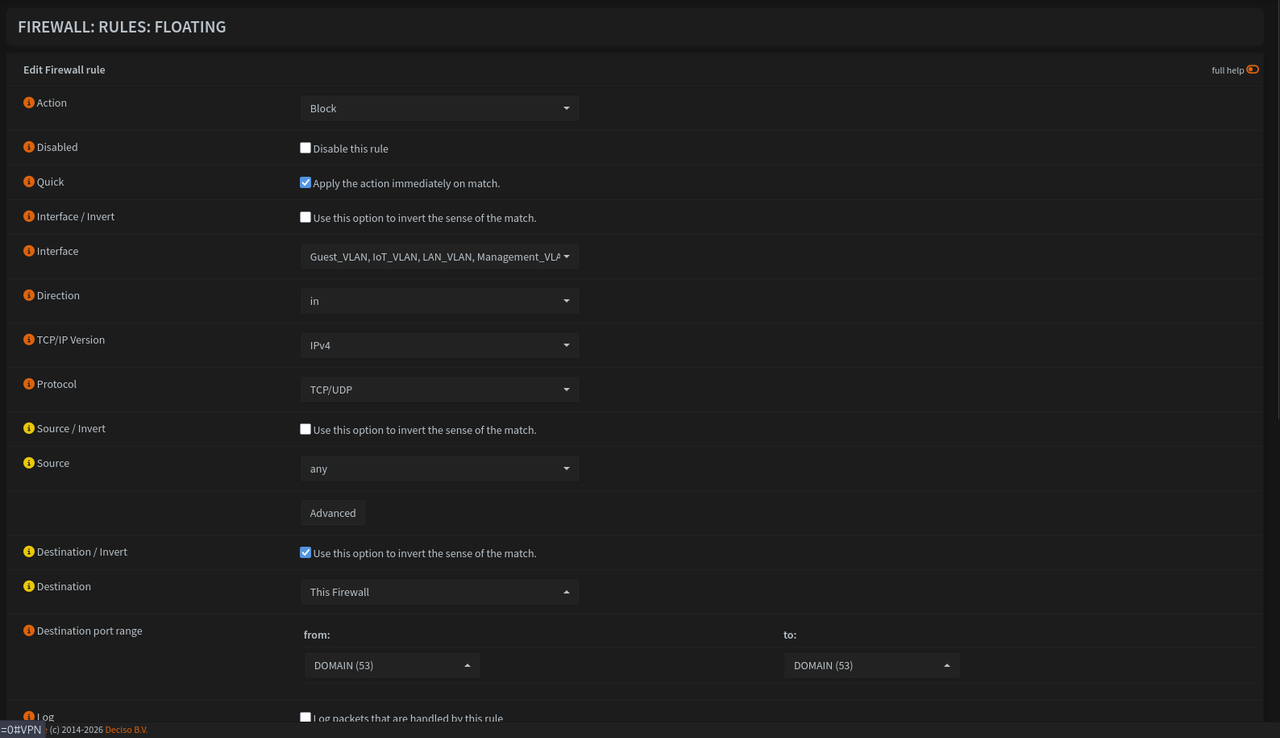

and here is the floating rule,

Are these correct now?  And this will force all clients to use Unbound as their DNS even if they set some custom DNS manually? Like android phones have hardcoded 8.8.8.8 DNS I think..  and the destination NAT rule will forward all the traffic for port 53 that we block via floating to Unbound?
