IPv6 link-local route does not survive reboot

[matt335672]

Hi,

I've got a couple of OpnSense routers running 25.7.11_2 linked together.

My primary router receives a static /48 from my ISP, and then delegates a /60 to the secondary router. This is all done with static routing rather than PD, as Kea can't currently add the route for a delegated prefix automatically - see https://forum.opnsense.org/index.php?topic=48680

The interface vtnet3 on the main router has an address of FE80::1/64 and the interface em0 on the secondary router has an address of FE80::2/64.

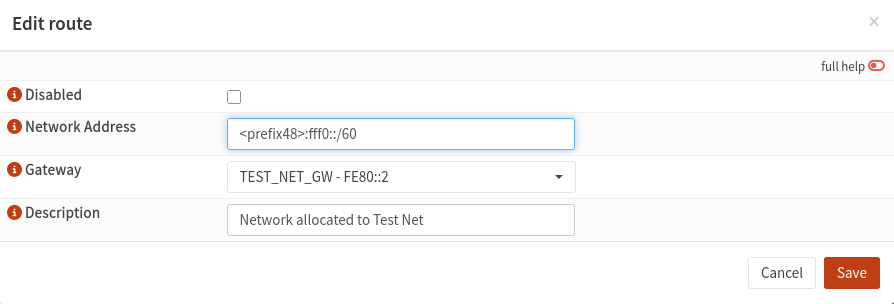

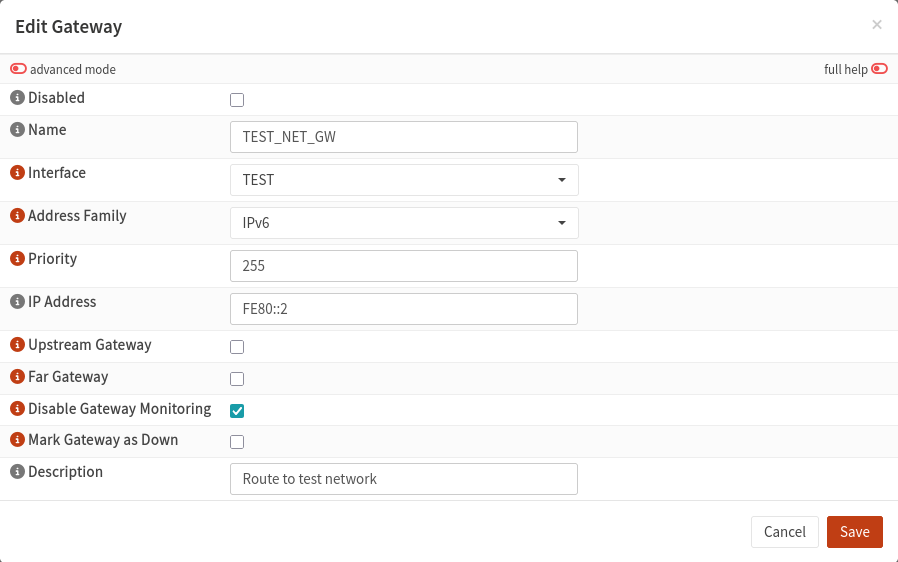

On the main router, I've got a gateway and a static route configured to reach the secondary router as follows (links to postimg.cc):



The secondary router just has FE80::1 on the main router set as a default gateway.

There's also an IPv4 config set up in  similar way.

This all works fine until I reboot the main router. When it comes up, the route for <prefix48>fff0::/60 to FE80::2%vtnet3 is missing from the routing table until I click the 'Apply' button on the routing config screen on the main router.

IPv4 works perfectly, although this is not using link-local addresses.

Any idea what I'm doing wrong here?

[Maurice]

Nothing wrong with your configuration, it's most likely a bug. I've seen this behaviour before under hard to reproduce circumstances - some static IPv6 routes sometimes don't get added to the routing table after a reboot. Haven't been able to pinpoint it and mostly worked around it with Monit.

If it's reproducible in your setup, creating an issue on GitHub with as many details as possible (logs) might be the best way forward.

Cheers
Maurice

[Monviech (Cedrik)]

Kea sets automatic routes now, it was a roadmap item:

https://docs.opnsense.org/manual/kea.html#prefix-delegation-ia-pd
